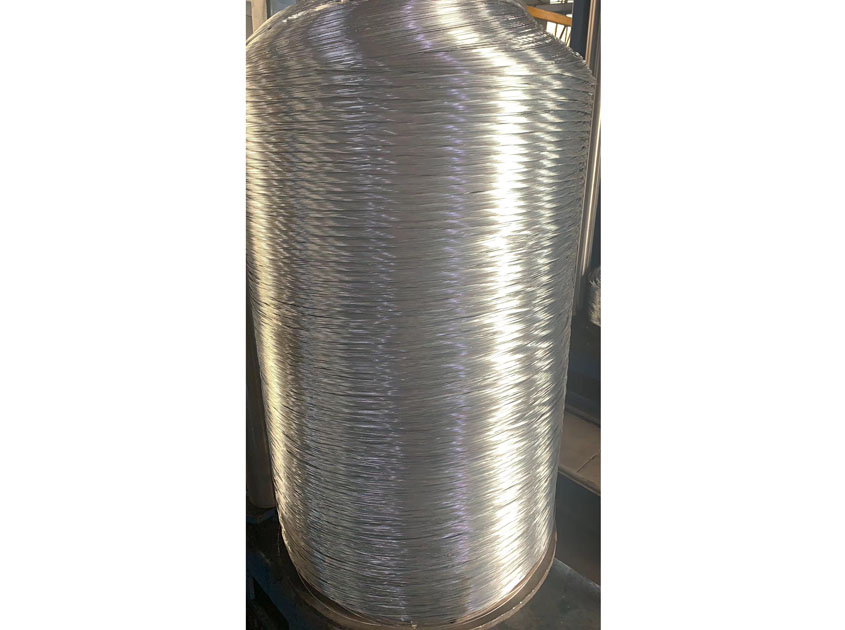

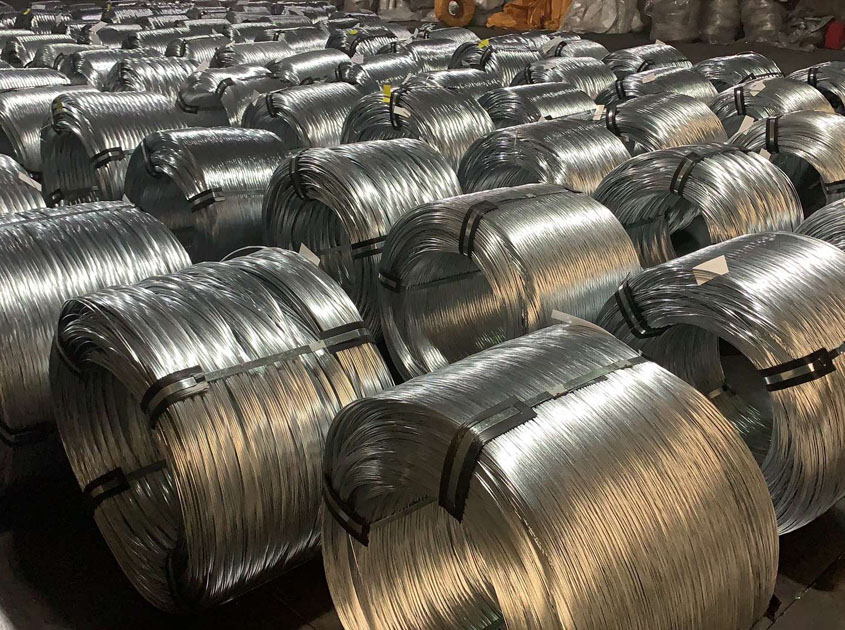

Hot Dipped Galvanized Wire

black wire cloth

Black Wire Mesh

Quick Details:
    • Type:hot galvanized wire
    •  Material: Q195(C is 0.06%-0.12%)
    • Diameter: 0.5mm- 6.0mm
    • Elongation: 10%-25%
    • Weight: 1kg-800kg/coil
    • MOQ: 100 kg
    • Zinc coating: General is 50g/sqm-80g/ sqm
    • Tensile strength: 300N/ sqm-1500N/ sqm
    • Packaging Details: Inside with plastic film, outside weaving  bag.
  • Inside with plastic film, outside hessian   cloth





DETAIL INFORMATION:

Hot-dip galvanized is immersed in the molten zinc melt, the production speed is fast, the coating is thick but not uniform, the

market allows the minimum thickness of 45 microns, up to 300 microns or more Color darker, consumption of zinc metal and

more, with the base metal to form infiltration layer, corrosion resistance, outdoor hot galvanized can be maintained for decades.

As the resulting coating is thicker, hot-dip galvanized has better protective properties than galvanized zinc and is therefore an

important protective coating for steel parts for harsh working conditions. Hot galvanized products in the chemical industry, oil

processing, marine exploration, metal structure, power transmission, shipbuilding and other industries have a wide range of

applications in the agricultural areas such as pesticide sprinkler irrigation, greenhouses and construction industry such as water and gas transportation, wire casing, scaffolding, Highway fence, etc, is now widely used.

Hot Dipped Galvanized Wire Specifications:



Wire Gauge Size SWG(mm  ) BWG(mm) BG(mm)
6 4.87 5.15 5.032
7 4.47 4.57 4.481
8 4.06 4.19 3.988
9 3.66 3.76 3.551
10 3.25 3.40 3.175
11 2.95 3.05 2.827
12 2.64 2.77 2.517
13 2.34 2.41 2.24
14 2.03 2.11 1.994
15 1.83 1.83 1.775
16 1.63 1.65 1.588
17 1.42 1.47 1.412
18 1.22 1.25 1.257
19 1.02 1.07 1.118
20 0.91 0.89 0.996
21 0.81 0.813 0.887
22 0.71 0.711 0.749
23 0.61 0.025 0.707
24 0.56 0.022 0.629
25 0.51 0.02 0.56
26 0.46 0.018 0.498
