Weight of stainless steel wire mesh

We produces Stainless Steel Wire Mesh from first class stainless steel wire materials in SUS302, 304, 316, 304L, 316L. Typical Weaving Patterns for Stainless Steel Wire Mesh is Plain weave and dutch weave two types. We introduce the weight of stainless steel wire mesh for Plain weave and dutch weave today.

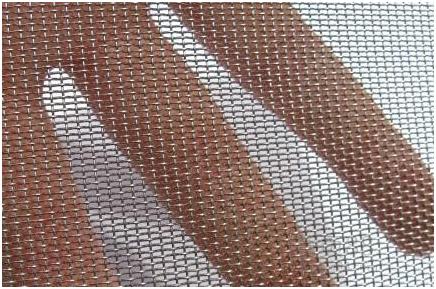

The shorthand of plain weave is PW. The pattern of plain weave is each warp crosses on every weft thread, and the diameter yarn is the same as the weft thread. The knitting pattern of the thickness, the warp and the weft at a 90 degree angle.The weight of stainless steel wire mesh formula is: wire diameter x  wire diameter x mesh counts ÷2, it’s the weight of stainless steel wire mesh for kg per square meter.

The shorthand of dutch weave is DW.The pattern of dutch weave is that diameter of warp and weft is different, and the mesh counts are different.It is thinner and denser. The length is warp and the width is weft. The weight of stainless steel wire mesh formula is: (warp wire diameter x warp wire diameter x mesh counts + weft wire diameter x weft wire diameter x mesh counts)  ÷4, it’s the weight of stainless steel wire mesh for kg per square meter.

We can notice that all the weight above is for the weight for per square meter, you can know the final weight according to the products shape.
