Welded wire mesh sheets are widely used in construction, fencing, industrial protection, agriculture, and infrastructure projects. One of their biggest advantages is that they can be fully customized according to different project requirements, including wire diameter, mesh size, sheet dimensions, surface treatment, and application environment.
For international buyers, contractors, and distributors, understanding how to customize welded wire mesh sheets is essential to ensure the product meets engineering standards, installation needs, and long-term performance expectations.
This guide explains the key customization options, technical considerations, and practical steps for ordering welded wire mesh sheets from a professional manufacturer.
What Are Welded Wire Mesh Sheets?

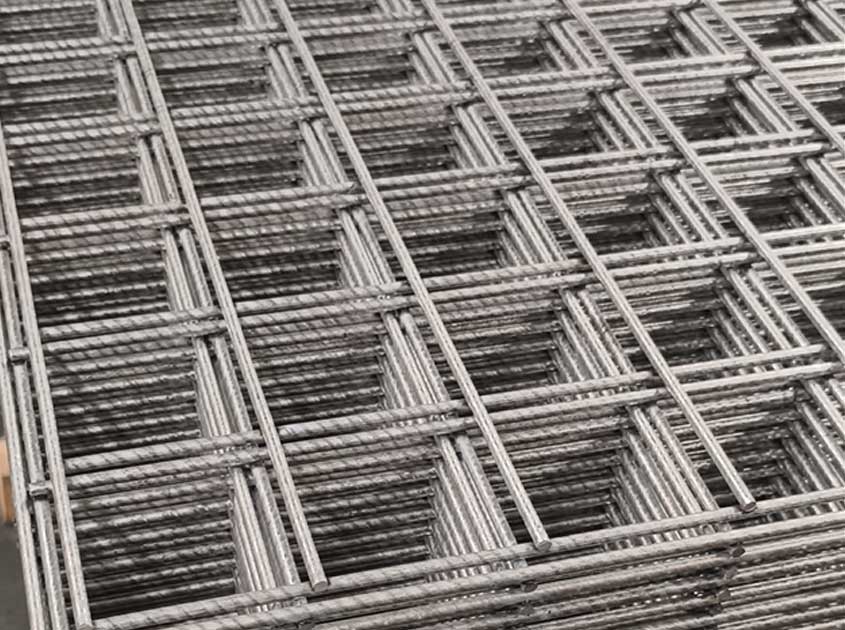

Welded wire mesh sheets are prefabricated steel panels made by welding intersecting steel wires at uniform spacing. The result is a rigid grid structure that provides strength, stability, and load-bearing performance.
Compared with wire mesh rolls, mesh sheets offer:
Higher rigidity
Easier installation
Better dimensional accuracy
Stronger structural support
They are commonly used in:
Concrete reinforcement
Security fencing
Industrial cages
Construction flooring systems
Key Customization Options for Welded Wire Mesh Sheets
1. Wire Diameter Selection
Wire diameter is one of the most important customization factors because it directly affects strength and durability.
Common options include:
2.0–3.0 mm: light-duty applications
3.0–4.0 mm: standard construction and fencing
4.0–6.0 mm: heavy-duty industrial use
Thicker wire provides higher tensile strength and better impact resistance, while thinner wire is more cost-effective and easier to handle.
2. Mesh Opening Size
Mesh opening determines the spacing between wires and affects security, strength, and visibility.
Typical specifications:
25 × 25 mm: high-security applications
50 × 50 mm: fencing and cages
100 × 100 mm: general construction use
150 × 150 mm: large-area reinforcement
Smaller mesh openings provide better protection, while larger openings reduce material cost and weight.
3. Sheet Dimensions
Welded wire mesh sheets can be customized in width and length according to project requirements.
Common sizes include:
1.2 m × 2.4 m
2.0 m × 3.0 m
2.4 m × 6.0 m
Custom sizes based on engineering drawings
Correct sizing helps reduce cutting waste and improves installation efficiency.
4. Surface Treatment Options
Surface treatment is critical for corrosion resistance and service life.
Available options include:
Hot-Dip Galvanized
Excellent corrosion resistance
Long outdoor lifespan
Ideal for harsh environments
Electro Galvanized
Smooth surface finish
Lower cost option
Suitable for indoor or mild environments
PVC Coated
Additional protective layer
Available in green, black, and custom colors
Widely used in fencing and agriculture
Stainless Steel
Maximum corrosion resistance
High-end industrial and architectural applications
Long-term durability
5. Edge Treatment Customization
Mesh sheet edges can also be customized for safety and installation requirements:
Straight cut edges
Bent edges for reinforcement
Frame welded edges for rigid panels
Hooked edges for easy installation
Proper edge design improves handling safety and structural performance.
6. Panel Shape and Special Designs
In addition to standard rectangular sheets, welded wire mesh can be customized into:
Curved panels
Irregular shapes for architectural projects
Pre-formed cages or enclosures
Reinforcement cages for concrete structures
This flexibility is especially important for complex engineering or architectural designs.
Application-Based Customization Guide
Construction and Concrete Reinforcement
Recommended specifications:
Wire diameter: 3.0–6.0 mm
Mesh size: 100 × 100 mm or 150 × 150 mm
Surface: galvanized or black steel
Focus: strength, load distribution, crack control
Security Fencing Systems
Recommended specifications:
Wire diameter: 3.0–5.0 mm
Mesh size: 50 × 50 mm or smaller
Surface: galvanized + PVC coating
Focus: anti-climb, anti-cut, durability
Industrial Protection Cages
Recommended specifications:
Wire diameter: 4.0–6.0 mm
Mesh size: 25 × 25 mm or 50 × 50 mm
Surface: galvanized or stainless steel
Focus: safety, strength, impact resistance
Agricultural Applications
Recommended specifications:
Wire diameter: 2.0–3.5 mm
Mesh size: 50 × 50 mm or 75 × 75 mm
Surface: PVC coated or galvanized
Focus: corrosion resistance, animal safety, cost efficiency
How to Customize Welded Wire Mesh Sheets Step by Step
Step 1: Define Application Requirements
Identify:
Project type
Load requirements
Environmental conditions
Installation method
Step 2: Select Material and Surface Treatment
Choose based on:
Corrosion risk
Budget
Service life requirements
Step 3: Confirm Technical Specifications
Define:
Wire diameter
Mesh opening
Sheet size
Edge design
Step 4: Request Manufacturer Drawings
Professional manufacturers provide:
CAD drawings
Technical specifications
Load performance suggestions
Step 5: Sample Confirmation
For large orders, request:
Physical samples
Quality testing reports
Surface finish confirmation
Step 6: Mass Production and Quality Inspection
Ensure:
Welding strength testing
Dimensional accuracy checks
Coating thickness inspection
Advantages of Customized Welded Wire Mesh Sheets
Perfect Fit for Engineering Projects
Customization ensures exact match with design requirements.
Reduced Installation Time
Pre-cut and pre-shaped sheets improve construction efficiency.
Improved Structural Performance
Proper specifications enhance safety and durability.
Cost Optimization
Avoids unnecessary material waste and reduces labor costs.
Why Global Buyers Choose Chinese Manufacturers
China has become a major global supplier of welded wire mesh sheets due to:
Advanced automatic welding production lines
Large-scale manufacturing capability
Flexible customization options
Competitive pricing for bulk orders
Strong international logistics support
Chinese manufacturers supply customized mesh sheets to Europe, the Middle East, Africa, Southeast Asia, and South America.
How to Choose a Reliable Supplier
A professional manufacturer should offer:
Technical Capability
Engineering design support
Custom production capability
Project-based solutions
Quality Assurance
Wire tensile testing
Welding strength inspection
Coating quality control
Export Experience
International packaging standards
Container loading optimization
Global shipping support
Conclusion
Customizing welded wire mesh sheets is essential for achieving optimal performance in construction, fencing, industrial protection, and agricultural applications. By carefully selecting wire diameter, mesh size, sheet dimensions, and surface treatment, buyers can ensure maximum efficiency, durability, and cost-effectiveness.
As a professional Chinese welded wire mesh manufacturer and exporter, providing fully customized solutions with strict quality control helps global clients complete engineering and infrastructure projects with higher safety, better performance, and long-term reliability worldwide.
