Welded wire mesh roll is a widely used metal mesh product made by welding steel wires together at their intersections to create a strong and uniform grid structure.

Unlike woven wire mesh, which is produced by weaving wires over and under each other, welded wire mesh is manufactured through an automatic welding process that creates fixed connections between horizontal and vertical wires.

Because of its high strength, consistent openings, easy installation, and wide range of specifications, welded wire mesh roll is commonly used in construction, agriculture, fencing, industrial protection, animal enclosures, concrete reinforcement, and general fabrication projects.

Available in different materials, wire diameters, mesh sizes, and surface treatments, welded wire mesh rolls can be customized for different project requirements.

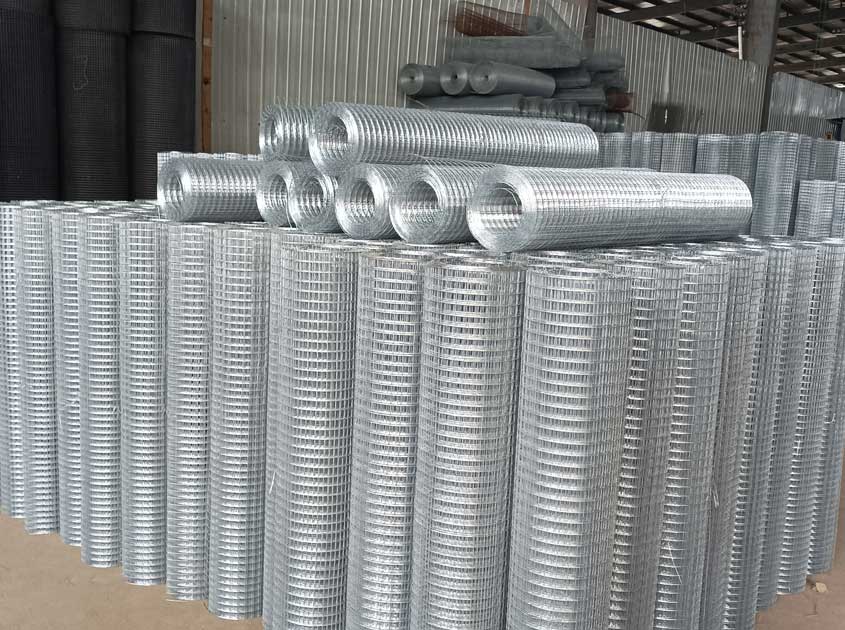

What Is Welded Wire Mesh Roll?

Welded wire mesh roll is a flexible sheet of metal mesh supplied in a continuous roll form.

It consists of:

• Longitudinal wires
• Cross wires
• Welded intersections

Each crossing point is electrically welded to create a rigid mesh structure.

The main characteristics of welded wire mesh roll include:

• Uniform mesh openings
• Strong welded joints
• Easy handling and transportation
• Fast installation
• Customizable specifications

Compared with welded wire mesh panels, rolls are more flexible and convenient for projects requiring long continuous fencing or large coverage areas.

How Is Welded Wire Mesh Roll Made?

The production of welded wire mesh roll involves several important manufacturing steps.

1. Wire Material Preparation

The first step is preparing the steel wire used for production.

Common raw materials include:

• Low carbon steel wire
• Galvanized steel wire
• Stainless steel wire
• PVC coated wire

The wire diameter is selected according to the required strength and application.

Common wire diameters include:

• 0.8 mm - 2.0 mm for light-duty mesh
• 2.0 mm - 3.5 mm for general applications
• 4.0 mm and above for heavy-duty applications

Before welding, the wire must meet requirements for:

• Diameter accuracy
• Surface quality
• Tensile strength
• Straightness

2. Wire Straightening and Cutting

For some production methods, wire is first straightened and cut into fixed lengths.

This ensures:

• Accurate mesh dimensions
• Consistent wire spacing
• Stable welding quality

For roll production, continuous wire feeding systems are commonly used to improve efficiency.

3. Automatic Welding Process

The prepared wires are arranged vertically and horizontally according to the required mesh design.

At each intersection point, electrical resistance welding is applied.

The welding process creates:

• Strong joints
• Uniform mesh structure
• Accurate opening dimensions

Modern automatic welding machines allow manufacturers to produce large quantities of mesh with consistent quality.

4. Mesh Forming and Rolling

After welding, the finished mesh passes through forming equipment.

The mesh is then:

• Flattened
• Inspected
• Cut to required width
• Rolled into coils

Common roll lengths include:

• 10 meters
• 25 meters
• 30 meters
• 50 meters

Custom roll sizes can also be produced depending on customer requirements.

5. Surface Treatment

After welding, the mesh may receive different surface treatments to improve corrosion resistance and appearance.

Common treatments include:

Galvanized Welded Wire Mesh

Galvanized coating provides protection against rust and corrosion.

Two common methods include:

Electro Galvanized

Provides a thinner zinc coating and is suitable for general applications.

Hot Dipped Galvanized

Provides a thicker zinc coating and better outdoor durability.

PVC Coated Welded Wire Mesh

PVC coating adds an additional protective layer over galvanized or steel wire.

Advantages include:

• Improved corrosion resistance
• Better appearance
• Different color options

Common colors include:

• Green
• Black
• White
• Brown

Stainless Steel Welded Wire Mesh

Stainless steel provides excellent corrosion resistance and is suitable for demanding environments.

Common grades include:

• Stainless steel 304
• Stainless steel 316

Main Types of Welded Wire Mesh Roll

1. Galvanized Welded Wire Mesh Roll

This is one of the most common types.

Applications include:

• Construction
• Agriculture
• Animal fencing
• Garden protection
• Industrial use

It provides a good balance between durability and cost.

2. PVC Coated Welded Wire Mesh Roll

PVC coated mesh is often selected where appearance and corrosion resistance are important.

Typical applications include:

• Garden fencing
• Residential fencing
• Decorative barriers
• Landscape projects

3. Stainless Steel Welded Wire Mesh Roll

Stainless steel welded mesh is designed for environments requiring higher corrosion resistance.

Applications include:

• Food processing
• Chemical industries
• Marine environments
• Specialized industrial projects

Common Welded Wire Mesh Roll Specifications

The performance of welded wire mesh depends mainly on:

• Wire diameter
• Mesh opening
• Roll width
• Roll length
• Material
• Surface treatment

Mesh Opening

The mesh opening refers to the distance between adjacent wires.

Common openings include:

• 1/2 inch
• 1 inch
• 2 inch
• 50 mm
• 75 mm
• 100 mm

Smaller openings provide:

• Higher protection
• Better containment
• Increased security

Larger openings provide:

• Lower material consumption
• Better visibility
• Reduced cost

Wire Diameter

Wire diameter affects:

• Strength
• Weight
• Durability
• Price

Common wire diameters include:

• 1.0 mm
• 1.5 mm
• 2.0 mm
• 2.5 mm
• 3.0 mm
• 4.0 mm

The correct diameter depends on the intended application.

Roll Width

Standard widths include:

• 0.5 m
• 1.0 m
• 1.2 m
• 1.5 m
• 1.8 m
• 2.0 m

Custom widths are available for special projects.

Advantages of Welded Wire Mesh Roll

Strong Welded Structure

The welded intersections provide better dimensional stability compared with loose woven structures.

Easy Installation

Roll format allows quick installation over large areas.

It is especially suitable for:

• Fencing projects
• Agricultural applications
• Construction sites

Uniform Mesh Openings

Automatic welding ensures consistent spacing throughout the roll.

This provides:

• Better appearance
• Predictable performance
• Easier installation

Customizable Options

Manufacturers can customize:

• Wire diameter
• Mesh size
• Roll dimensions
• Coating
• Material

Cost Effective

Compared with many rigid fencing systems, welded wire mesh rolls can provide an economical solution for large-area applications.

Applications of Welded Wire Mesh Roll

1. Agricultural Applications

Welded wire mesh rolls are widely used in farming.

Applications include:

• Animal fencing
• Poultry cages
• Livestock areas
• Garden protection
• Crop protection

Galvanized mesh is commonly selected because of its outdoor durability.

2. Construction Applications

Welded wire mesh is used in construction for:

• Concrete reinforcement
• Wall reinforcement
• Safety barriers
• Temporary protection

Its strength and uniform structure make it suitable for many building applications.

3. Garden and Landscape Applications

Common uses include:

• Garden fences
• Plant support
• Tree protection
• Decorative barriers

PVC coated welded mesh is often chosen because of its appearance.

4. Industrial Applications

Industrial uses include:

• Machine guards
• Storage partitions
• Equipment protection
• Safety barriers

Heavy wire specifications are typically selected for industrial environments.

5. Animal Enclosures

Welded wire mesh is widely used for:

• Chicken fencing
• Rabbit cages
• Pet enclosures
• Animal shelters

The mesh opening should be selected according to the size of the animals being contained.

Welded Wire Mesh Roll vs Welded Wire Mesh Panel

Rolls are usually preferred when flexibility and long-distance coverage are important.

How to Choose the Right Welded Wire Mesh Roll?

Before purchasing, consider:

1. Application

Determine whether the mesh will be used for:

• Fence
• Construction
• Agriculture
• Animal enclosure
• Industrial protection

2. Wire Diameter

Choose according to:

• Required strength
• Expected load
• Security level

3. Mesh Opening

Consider:

• Security requirements
• Animal size
• Visibility requirements

4. Surface Treatment

Choose according to the environment:

• Galvanized for general outdoor use
• PVC coated for appearance and additional protection
• Stainless steel for demanding conditions

5. Roll Dimensions

Confirm:

• Width
• Length
• Quantity required
• Installation method

Why Choose Qunkun Metal Welded Wire Mesh Roll?

Qunkun Metal manufactures welded wire mesh rolls for international customers in different industries.

Our products can be customized according to:

• Wire diameter
• Mesh opening
• Roll size
• Material
• Surface treatment
• Packaging requirements

Available options include:

• Galvanized welded wire mesh
• PVC coated welded wire mesh
• Stainless steel welded wire mesh

Our welded wire mesh rolls are widely used in:

• Agriculture
• Construction
• Fencing
• Industrial protection
• Animal applications

We provide solutions for distributors, contractors, and project buyers requiring reliable welded wire mesh products.

Frequently Asked Questions

What is welded wire mesh roll used for?

Welded wire mesh rolls are used for fencing, agriculture, construction reinforcement, animal enclosures, industrial protection, and garden applications.

Is welded wire mesh stronger than woven mesh?

Generally, welded wire mesh provides stronger and more stable intersections because the wires are permanently welded together.

What is the best coating for welded wire mesh?

The best coating depends on the environment. Hot dipped galvanized coating provides strong outdoor corrosion resistance, while PVC coating adds appearance and additional protection.

Can welded wire mesh rolls be customized?

Yes. Manufacturers can customize wire diameter, mesh opening, roll width, length, material, and surface treatment.

What is the difference between welded wire mesh roll and panel?

Rolls are flexible and suitable for long continuous installations, while panels are rigid and often used where a stronger framed structure is required.

Conclusion

Welded wire mesh roll is a practical and versatile metal mesh product that combines strength, flexibility, and easy installation.

Through an automatic welding process, inpidual wires are joined together to create a uniform grid structure with reliable performance.

With different materials, coatings, wire diameters, and mesh openings available, welded wire mesh rolls can be adapted for applications ranging from agriculture and construction to fencing and industrial protection.

Choosing the correct welded wire mesh depends on the project's requirements for strength, corrosion resistance, mesh size, installation method, and service life.

Qunkun Metal provides customized welded wire mesh roll solutions for global customers, helping contractors, distributors, and project buyers select the right specifications for their applications.
